| model |
110 |
| maximum voltage scope |
110kw |
| input voltage scope |
70-550V |
| output oscillating frequency |
1-20KHZ based on customer requirement |
| input voltage frequency |
three phase 380V±20% 50-60HZ |
| heating,retain current |
100% 24H |
| Weight (kg) |
85 |
| volume L*W*H (cm) |
81*43*90 |
| Melting furnace |
| models |
max input power/kw |
capacity each time |
| ferrous metal |
aluminum |
copper gold silver bronze |
| 110 |
110 |
60kg |
50kg |
150kg |
GOOD PERFORMANCE ON MELTING:
M.F. melting machines can be used for melting steel, stainless steel , brass, aluminum, gold silver etc.Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.Wide frequency range from1KHZ-20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
When melting, the cold furnace need 50-60minutes.The hot furnace need 20-30 minutes.
1.The machine have constant current and constant frequency control function, it can improve heating efficiency to save more energy.
2.Easy assembling.the machine connecting cable all have marks to clarify also have files and video for assembling. It just need to connect power and water for chilling can finish the assembling, only takes couple of minutes. No need professional assembling engineer,client can save more time ,energy and cost.
3.Easy to operate. Heating current and heat preservation function can adjust separately. Provide video guiding for whole operation.
4.The machine have timer function. The heating speed(heating time) and heat preservation time can be digitally set up.
5.The machine has fault analyzing and alarm system. When over pressure, over flow, over temperature,water fail etc fault happened, the process will protect main components in a regular time. The machine can have fault alarm light, easy for client to detect when fault happened.
6.100% full load, can continuously working 24 hours.
7.Frequency auto tracing and adjust system, no need to adjust frequency frequently adjust when working.
8.Compact size. To meet the requirements for factory production , school teaching and laboratory use.
9.Energy saving. In full power range, have very high power factor and power source efficiency.compare to silicone carbide medium frequency, can save more than 20% energy.
Advantages applications of separated transformer:
1. In these three series machines, the high frequency transformer is separated from the generator, with 2 meters connecting cable at least.
2. It is suitable to use in the dirty or corrosive surroundings, the generator can be put in a clean space to increase the reliability.
3. With the small size light weight of the separated transformer, it is convenient to use in the production line easily assembled inside the machinery or moved mechanism.Y
|
|

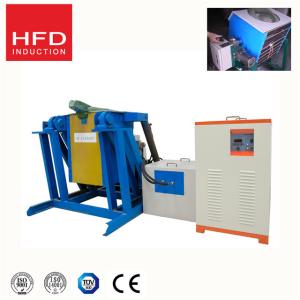

electric induction furnace Images
|
